Polyester
casting line
Equipment for continuous metering and mixing of unsaturated polyester resin with mineral fillers. In production since 2021.
Bolshevik industrial area, Razbegaevo, Lomonosovsky district, Leningrad Oblast 188513, Russia
Phone +7 (921) 782-00-00 · sales@polyblender.ru · polyblender.ru
Contents

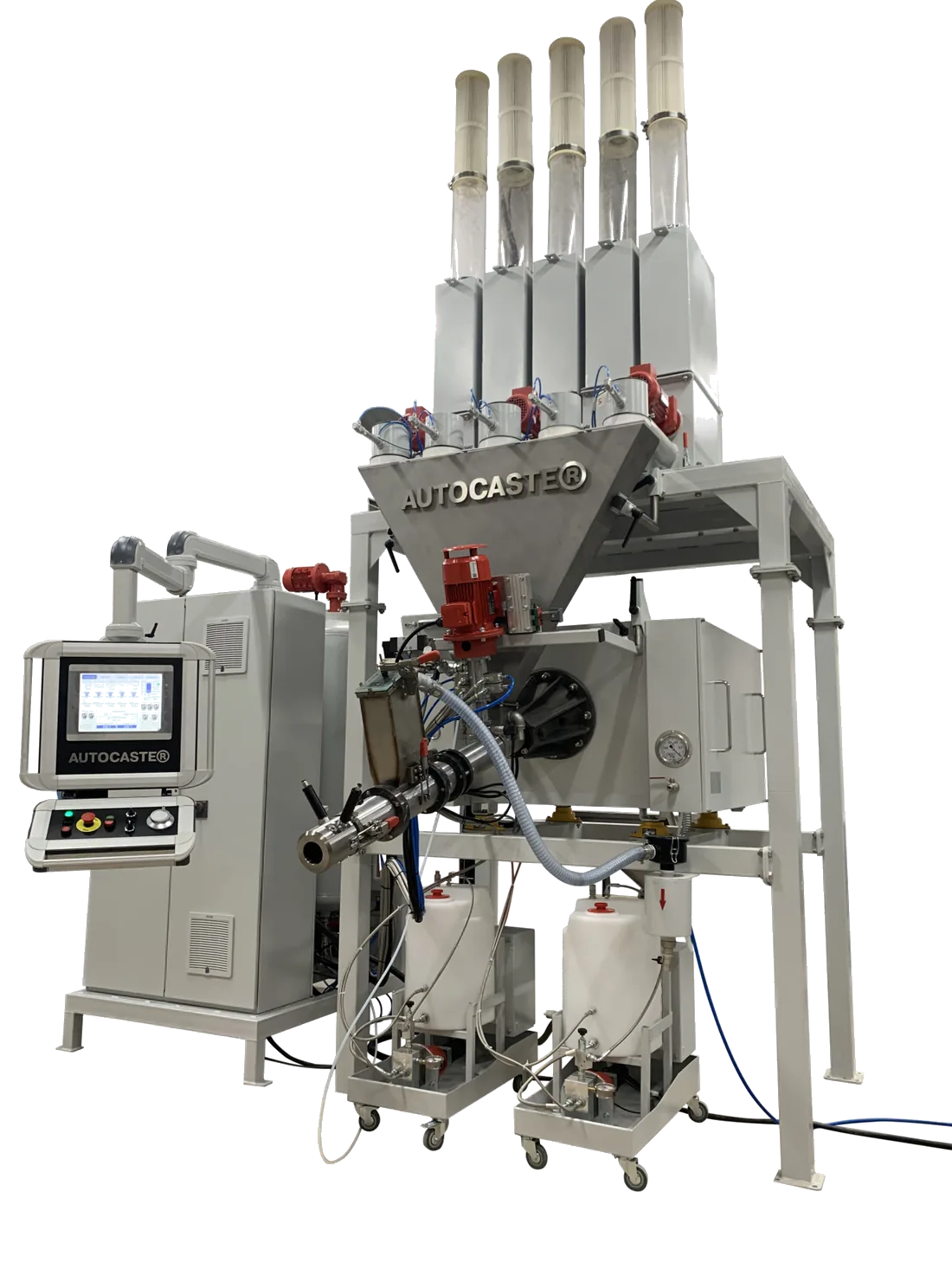

The line
Unsaturated polyester is the most widely used binder system in cast stone. Raw material is available in almost every market, which makes it the least expensive of the four systems both to start with and to run.
The line is built from current-generation components. Motors and geared motors by Siemens (Germany). A high-speed low-pressure mixing head of our own design, with a horizontal traverse unit that makes component calibration and servicing straightforward.
The metering screw and working cylinder are made from alloy steel with a bimetal-tungsten coating. A ceramic tip is available as an option and is particularly resistant to abrasive wear when running quartz fillers.
Feeders for coarse and fine filler carry an active dynamic bridge-breaking device that prevents the material sticking or hanging up in the screw zone. Every hopper has a volumetric level sensor tied into the control system and its own replaceable filter cartridge, so dust is not vented into the workshop.
The main mixing screw is fitted with a vacuum unit that degasses the mix as it is cast. The line can be supplied with automatic loading from floor level to the upper hoppers: a fully sealed system built on aeromechanical conveyor technology.
Units of the line
Dry component metering
Automatic metering of dry-fraction fillers in a continuous production process. Electrically driven feeders, each with a closed hopper above it and a sensor governing refilling from an external loading device. Hoppers sit above the casting section; every powder hopper has an agitator against arching and hang-up.
- WIKA capacitive level sensor (Germany)
- External filter cartridge
- Siemens geared motor (Germany) with frequency converter
- Shaftless nitrided feed screw
- Active dynamic bridge breaking
Liquid component metering
All liquid components are delivered by dedicated pumps and valves. When the machine stops, they switch to recirculation automatically. Delivery and metering are governed by automatic process control.
- 170 l resin buffer tank with continuous agitation
- BAUTEC gear metering pumps (Germany)
- FESTO servo drives (Germany)
- Component thermostatting
- Level sensors including ultrasonic
- Ratio range from 2:1 to 1:2
Dynamic mixing head
A recirculation-type head for pre-mixing and intensive mixing of the liquid components. It carries a set of nozzles of different diameters with chemically resistant pneumatic valves that regulate recirculation and casting pressure. Recirculation and casting phases follow the stored programme; chamber and mixer are sized to the required output.
- High-shear mixer
- Three-phase Siemens drive (Germany), 3000 rpm
- Horizontal traverse unit for calibration and servicing
- Automatic and manual solvent flushing with air purge
Mixing and casting unit
Mixer in special alloy steel producing low transverse load. The balanced cantilever mixing screw runs in a ball bearing support to ease discharge of the mix.
- Metering screw and working cylinder in alloy steel, bimetal-tungsten coating
- Option: ceramic tip and ceramic liners in the material cylinders
- Main resin buffer tank 170 l, carbon steel
- Level sensors, agitator, coarse filter
Vacuum degassing system
Continuous degassing of the casting mix during production. Without it, air entrained during mixing stays in the casting.
- BUSCH R5 Ra 0025 rotary vane pump (Germany), residual pressure 0.1 mbar
- Vacuum degassing column
- Cylindrical carbon filter
- PVC piping in steel braid
- WIKA electronic vacuum sensor and vacuum gauge
- Tempered quartz glass for visual level checking
- VITON chemically resistant seals (DuPont, USA)
Colour metering and resin heating
Colour unit with its own tank and high-accuracy metering. In-line resin heating brings the resin to temperature as it passes the heater, with automatic thermostatting at inlet and outlet.
- 25 l colour tank feeder
- BAUTEC gear pump (Germany) with FESTO servo drive
- 7.5 kW WIWA in-line heater (Germany)
- Temperature control through the PID algorithm of the controller
- Up to 4 colour lines at once
Cleaning circuit and compressed air
The cleaning circuit comprises a 20 l pressurised stainless steel vessel for cleaning fluid, a manual valve for flushing the mixing head if power is lost, and programmable switching between cleaning fluid and dry air. The compressed air system governs valve operation and solvent delivery and reacts automatically to a pressure drop below the set point.
- TEFLON connecting hoses (DuPont, USA)
- FESTO pneumatics and polyurethane air hoses (Germany)
- Alarm on pressure drop
Electronic control system
A separate distribution cabinet carrying the whole control and monitoring system plus a frequency converter for each metered component. The cabinet connects to the casting line by a 5 m control cable; the metering group connects to the mixing head by flexible hoses.
- 12″ touch panel: casting output, recipes, fault messages
- Monitoring of all systems and units at a set interval
- Mobile control pendant included in the supply
- Remote control module over WIFI
- Mitsubishi Electric control components
Applications
Solid Surface and cast marble: kitchen worktops, sinks and washbasins, bathtubs, stone slabs, façade and floor panels, marble, onyx and travertine imitations.
The base configuration already covers a broad range of applications. Unit layout, output and degree of automation follow the customer's technical specification: there is no fixed model range and no price list, and the quotation is prepared once the specification is agreed.
We also build lines for two-component acrylic (PMMA) and epoxy (EP) resins with mineral fillers and vacuum degassing. The machine design is shared across all four binder systems; what changes is the configuration for the binder.
SARMATECH LLC · TIN 4725011864 · PSRN 1214700012890
Bolshevik industrial area, Razbegaevo, Lomonosovsky district, Leningrad Oblast 188513, Russia
Phone +7 (921) 782-00-00 · sales@polyblender.ru · polyblender.ru
Catalogue current as of September 2026. The manufacturer reserves the right to alter the design and configuration.
Printed catalogue
Full illustrated catalogue with photographs of every unit: PDF 24 MB, 13 pages, with a text layer. The printed edition is in Russian; this page is its English equivalent.
